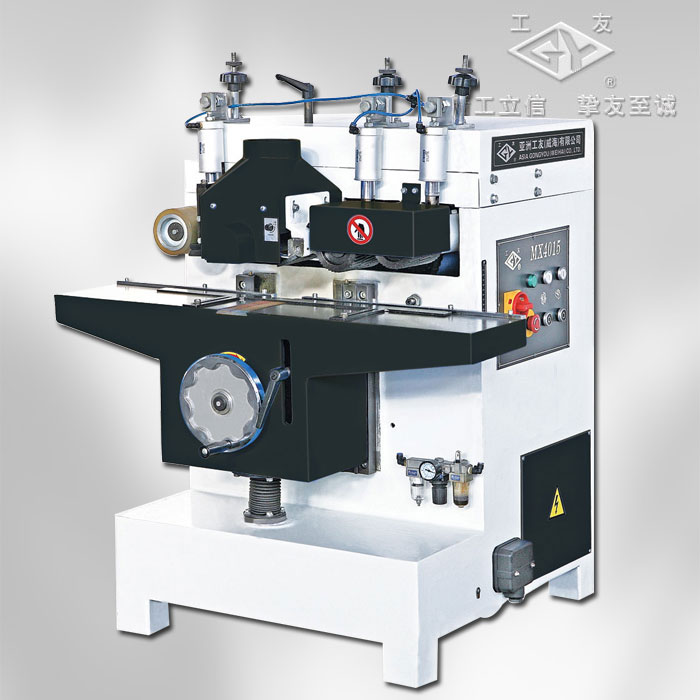

| Technical Specification | Unit | MX4015 |
| Max.milling width | mm | 150 |
| Max.milling thickness | mm | 120 |
| Min.milling length | mm | 400 |
| Max.milling depth | mm | 8 |
| Cutting diameter | mm | ?90-?125 |
| Feeding speed | m/min | 6/9/12 |
| Feed roller dia. | mm | ?100 |
| Spindle speed | r/min | 6000 |
| Amount of cutter spindle motion(axial) | mm | 20 |
| Main spindle power | kW | 4 |
| Feed power | kW | 0.75 |
| Pneumatic system pressure | MPa | 0.6 |
| Overall dimensions | mm | 1000×670×1190 |
| Net.weight | kg | 480 |
